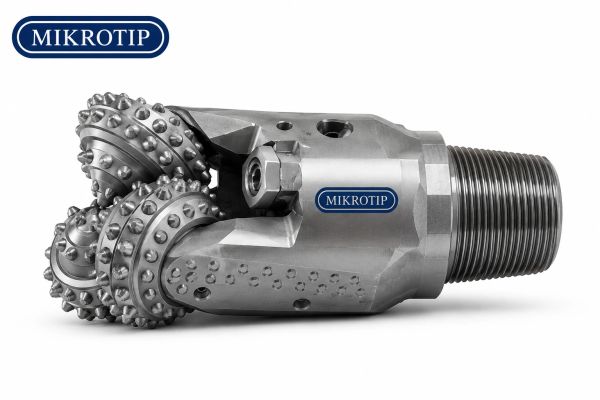

Tricone Drill Bits
Mikrotip's Tricone Drill Bits represent advanced engineering solutions for efficient rotary drilling across various applications, including oil & gas, mining, water well, and geothermal projects. Offered in both steel tooth and tungsten carbide insert (TCI) designs, these drill bits ensure reliable performance under a wide range of drilling conditions.
Features:
- High-strength alloy steel body.
- Sealed bearing design.
- Steel Tooth or TCI cutting structure.
- Excellent wear and impact resistance.
- Replaceable jet nozzles available.
- Suitable for soft to hard rock formations.
Specifications:
- Bit Diameter: 3 7/8" – 26"
- Bearing Type: Sealed Roller / Journal
- Cutting Structure: Steel Tooth or TCI
- API Connection: 2 3/8" REG – 7 5/8" REG
- Material: High-strength alloy steel
- Applications: Oil & Gas, Mining, Water Wells, Geothermal
Mikrotip Lat continually strives to provide the best solutions for your drilling needs.

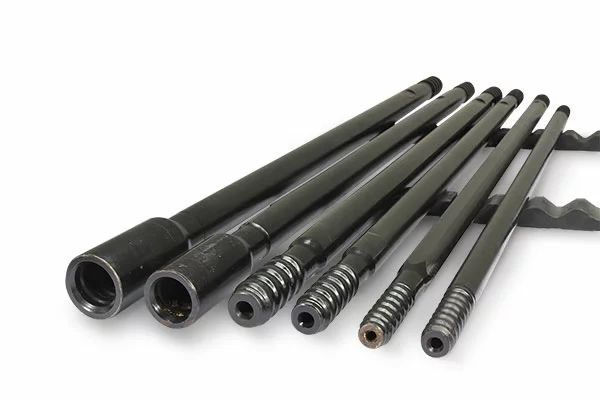

Extension Drill Rods and Male and Female Speed Rods
Description: Extension drill rods are engineered solutions designed to efficiently transfer impact energy and torque from the rock drill to the drill bit, optimizing performance in top hammer drilling applications. These high-quality rods are essential for professionals in fields such as underground mining and quarrying.
Typical Technical Specifications:
- Thread: R32
- Rod Diameter: 32–39 mm
- Lengths: 610 mm to 6,095 mm (2–20 ft)
- Material: High-strength alloy steel
- Heat Treatment: Fully carburized and heat-treated
- Application: Bench drilling, tunneling, underground mining, quarrying
Description: Male/Female speed rods represent an innovative approach in engineering solutions, as they eliminate the need for separate couplings. This design significantly improves drilling efficiency and reduces connection wear, making them a favored choice for those utilizing Mikrotip Lat technology.
Typical Technical Specifications:
- Thread: R32 Male × Female
- Rod Diameter: 32–39 mm
- Lengths: 915 mm to 4,880 mm
- Material: Heat-treated alloy steel
- Advantages:
- Fewer threaded connections
- Faster rod changes
- Improved energy transfer

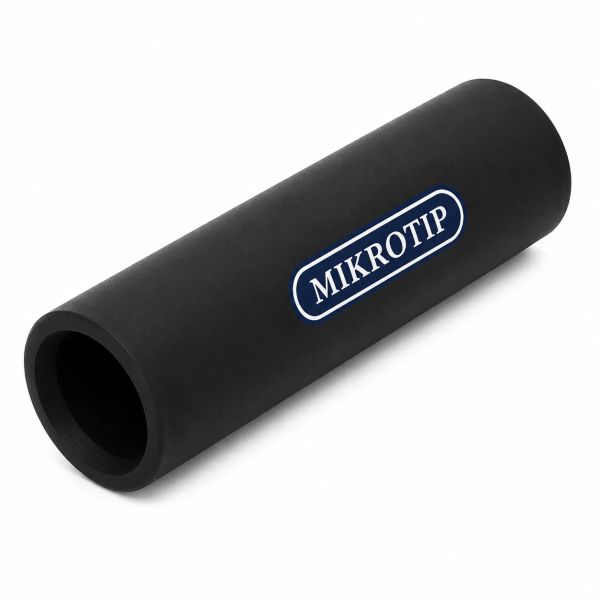

R32 Coupling Sleeves (Couplers)
Description: Coupling sleeves provide robust engineering solutions by securely joining two R32 threaded drill rods, ensuring efficient impact energy transmission.
Typical Technical Specifications:
Thread: R32 Female × Female
Material: High-strength alloy steel
Heat Treatment: Case hardened
Features:
Precision-machined threads
High wear resistance
Long service life
Additionally, Mikrotip Lat incorporates these coupling sleeves to enhance performance and durability in various applications.

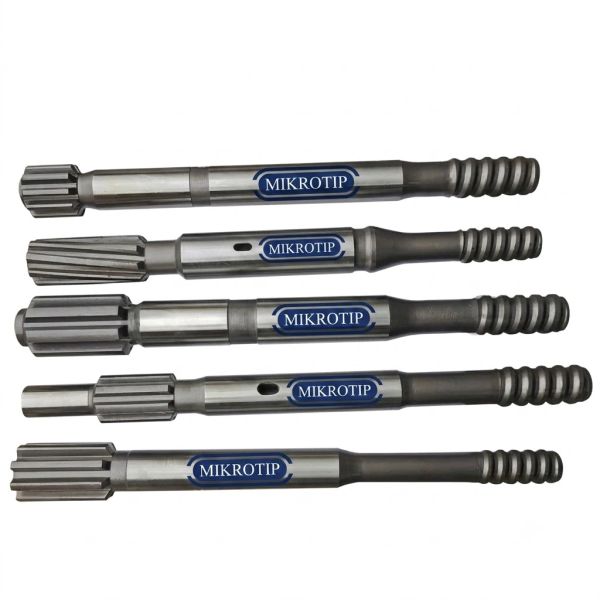

R32 Shank Adapters
Description: Shank adapters are essential engineering solutions that connect hydraulic or pneumatic rock drills to the drill string while effectively transmitting percussion energy.
Typical Technical Specifications:
Thread: R32
Material: Premium alloy steel
Heat Treatment: Induction hardened
These components are crucial for optimal performance in drilling applications, making them a part of the trusted Mikrotip Lat offerings.
.png/:/rs=w:1209,cg:true,m)

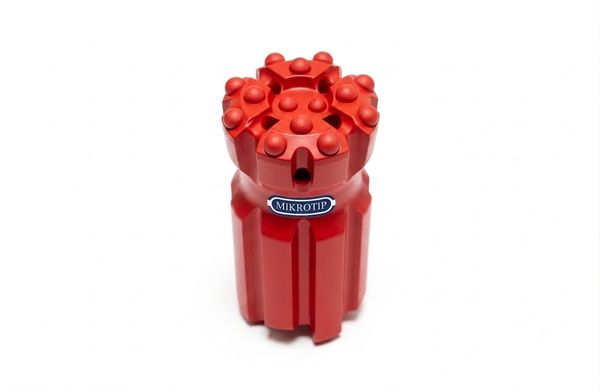

Button Bits
Description: Button bits are engineered solutions designed for high penetration rates and extended service life in medium to hard rock formations, making them ideal for applications such as Mikrotip Lat.
Typical Technical Specifications:
Thread: R32
Bit Diameter: 38–64 mm
Carbide Inserts: Spherical or ballistic tungsten carbide
Face Designs:
Flat Face
Drop Center
Convex
Applications:
Underground mining
Quarrying
Tunneling

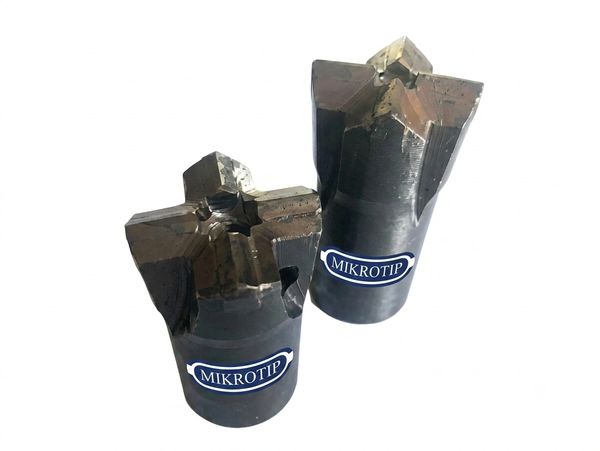

Cross Bits
Description: Our engineering solutions feature cross bits equipped with carbide cross inserts, ensuring reliable drilling in fractured and abrasive rock conditions. Typical Technical Specifications Thread: R32 Bit Diameter: 38–51 mm Carbide Type: Cross insert Material: Heat-treated alloy steel body Applications: Medium-hard formations Broken ground General rock drilling using Mikrotip Lat technology.

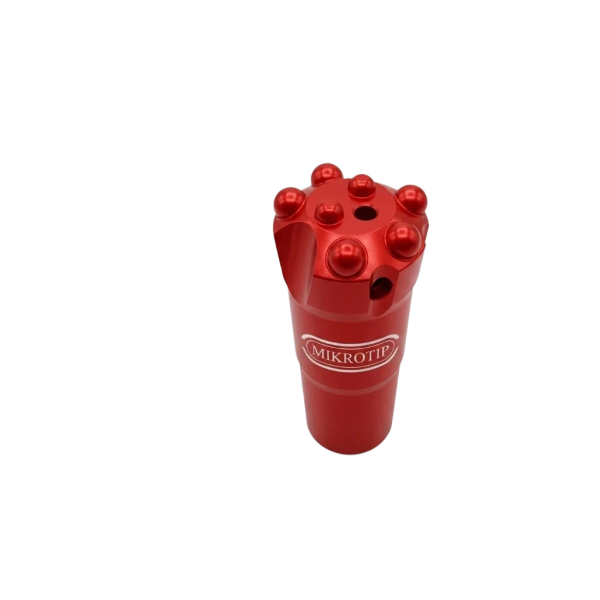

Retrac Button Bits
Description: Retrac button bits, part of our engineering solutions, incorporate retracting skirts to minimize bit jamming and enhance hole cleaning in fractured rock, making them an excellent choice for Mikrotip Lat applications.
Typical Technical Specifications
Thread: R32
Bit Diameter: 45–64 mm
Carbide Buttons: Spherical or ballistic
Face Types:
Drop Center
Flat Face
Features:
Improved flushing
Reduced sticking
Increased drilling efficiency
Reaming Bits
Description: Reaming bits provide effective engineering solutions by enlarging pilot holes while maintaining stability and accurate hole dimensions.
Typical Technical Specifications
Thread: R32
Reaming Diameter: 64–102 mm
Pilot Thread: R32
Material: Alloy steel with tungsten carbide inserts
Applications:
Raise drilling
Drift development
Hole enlargement using Mikrotip Lat
Crown Bits
Our crown bits, available in diameters ranging from 4 inches to 20 inches, incorporate diamond embedded designs and carbide inserts, providing premium engineering solutions for various drilling applications.
Crown Bits – Technical Specifications
Bit Type: Crown Bit
Thread Types: R25, R28, R32, R35, R38, T38, T45, T51
Diameter Range: 33–115 mm (1.30–4.53 in)
Carbide Type: High-grade tungsten carbide inserts
Body Material: Heat-treated alloy steel
Face Design: Flat Face, Drop Center, Convex
Flushing Holes: Optimized for efficient debris removal
Manufacturing Process: CNC machined and precision heat treated
Applications: Bench drilling, drifting, tunneling, quarrying, mining, and construction
Rock Conditions: Soft, medium, and hard rock formations
Features: High penetration rate, excellent wear resistance, long service life, and reliable performance in demanding drilling conditions, making them the ideal choice for Mikrotip Lat projects.
